ADV — Agentic CAD Drawing Validation
Two-phase CAD validation platform: a synchronous geometric rule engine plus an async LLM enhancement pass. Checks a structural GA drawing against its mechanical counterpart and reports every finding with the arithmetic behind it.
// outcome
- 8
- 49
- 5
- 20s
// problem
A structural GA drawing and the mechanical GA drawing for the same floor have to agree with each other. Reviewing that by hand is slow, inconsistent, and a bottleneck in heavy-engineering design cycles — and the errors it catches are the expensive ones, because they surface on the shop floor rather than at the desk.
// approach
Decoupled Phase 1 (a hand-written DXF/DWG parser and eight deterministic geometric checks) from Phase 2 (an async LLM pass that can only add findings, never replace them). The rule engine returns before the request does; the LLM runs behind it under a hard timeout and degrades to an explicit finding when it fails.
// results
- Eight distinct checks — tag, position, size, clash, clearance, elevation, missing and orphaned openings
- 49 pytest cases across the rule engine, parser, revision ledger, normaliser and end-to-end flow
- Every finding carries the formula that produced it and the numeric result, so a reviewer can check the arithmetic
- SHA-256 revision ledger: re-uploading identical bytes is a 409, not a duplicate row
- Semester-long industry engagement, sponsored by ISGEC Heavy Engineering

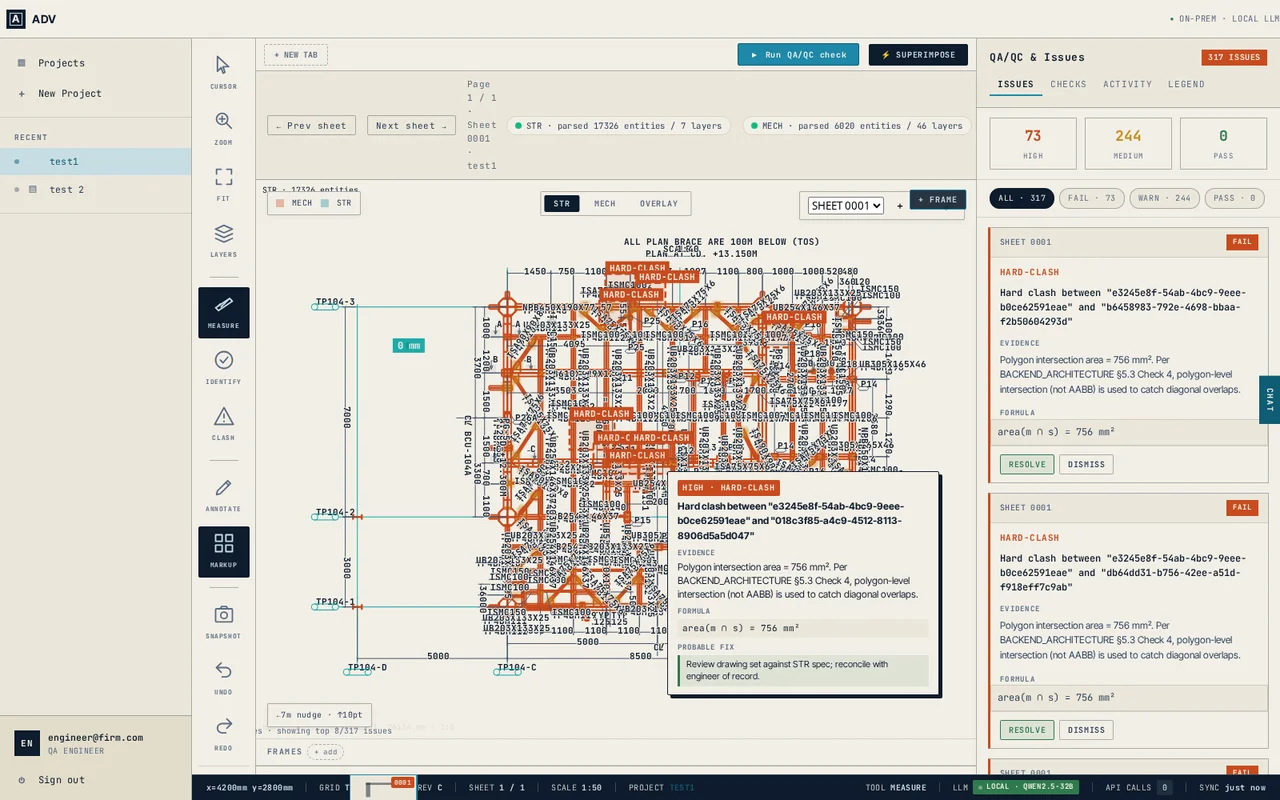

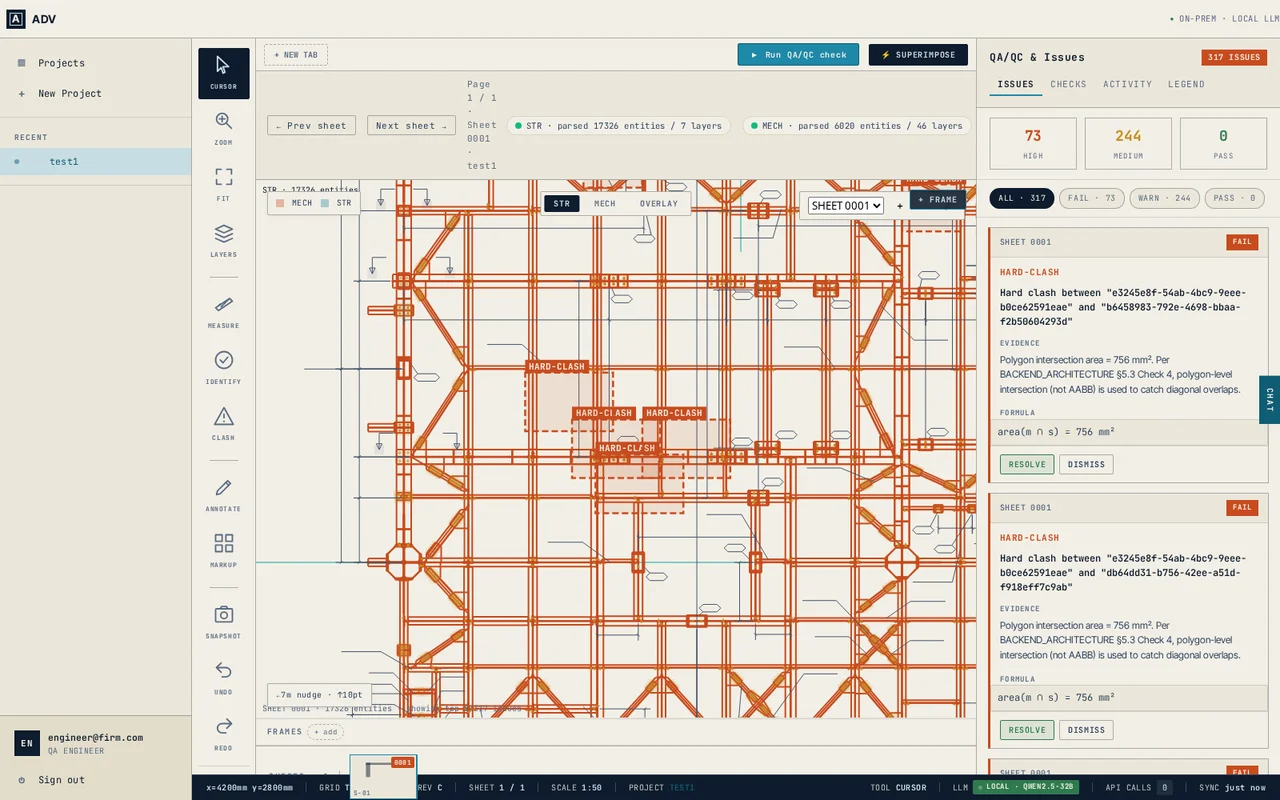

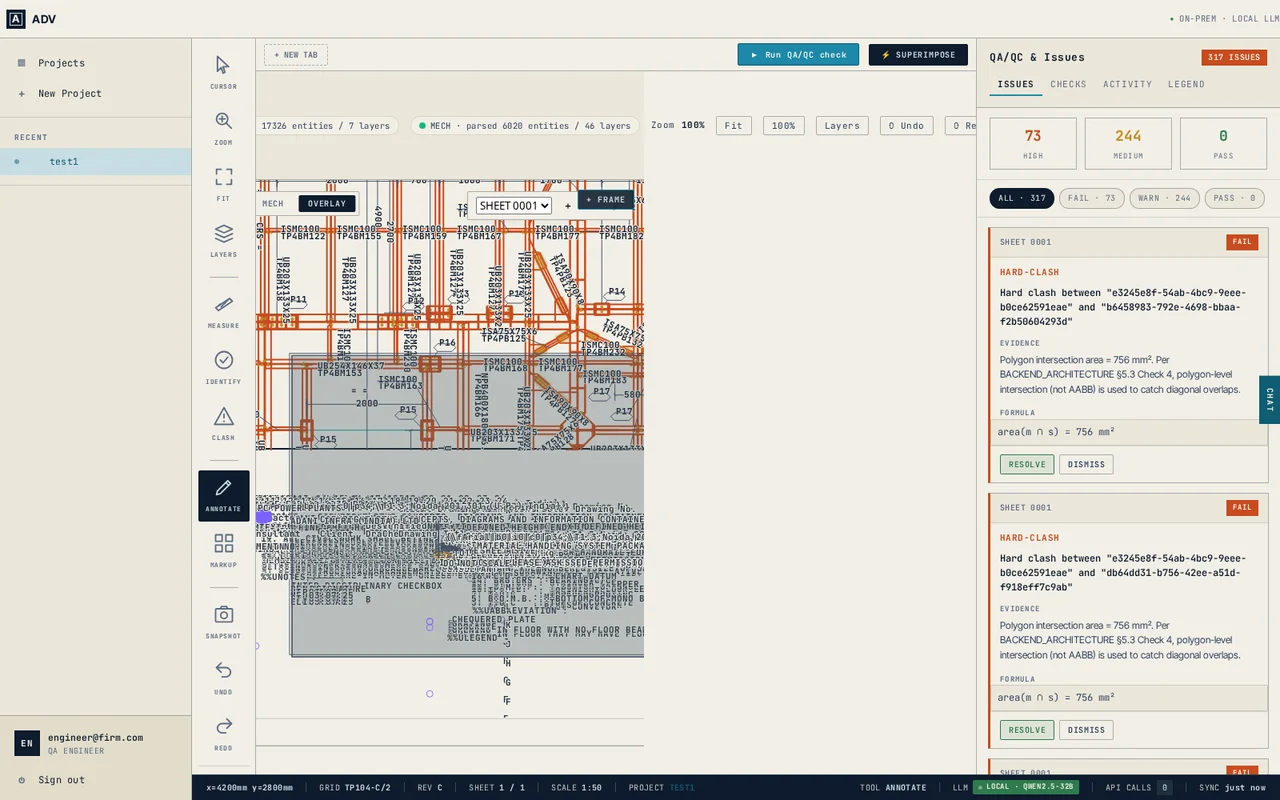

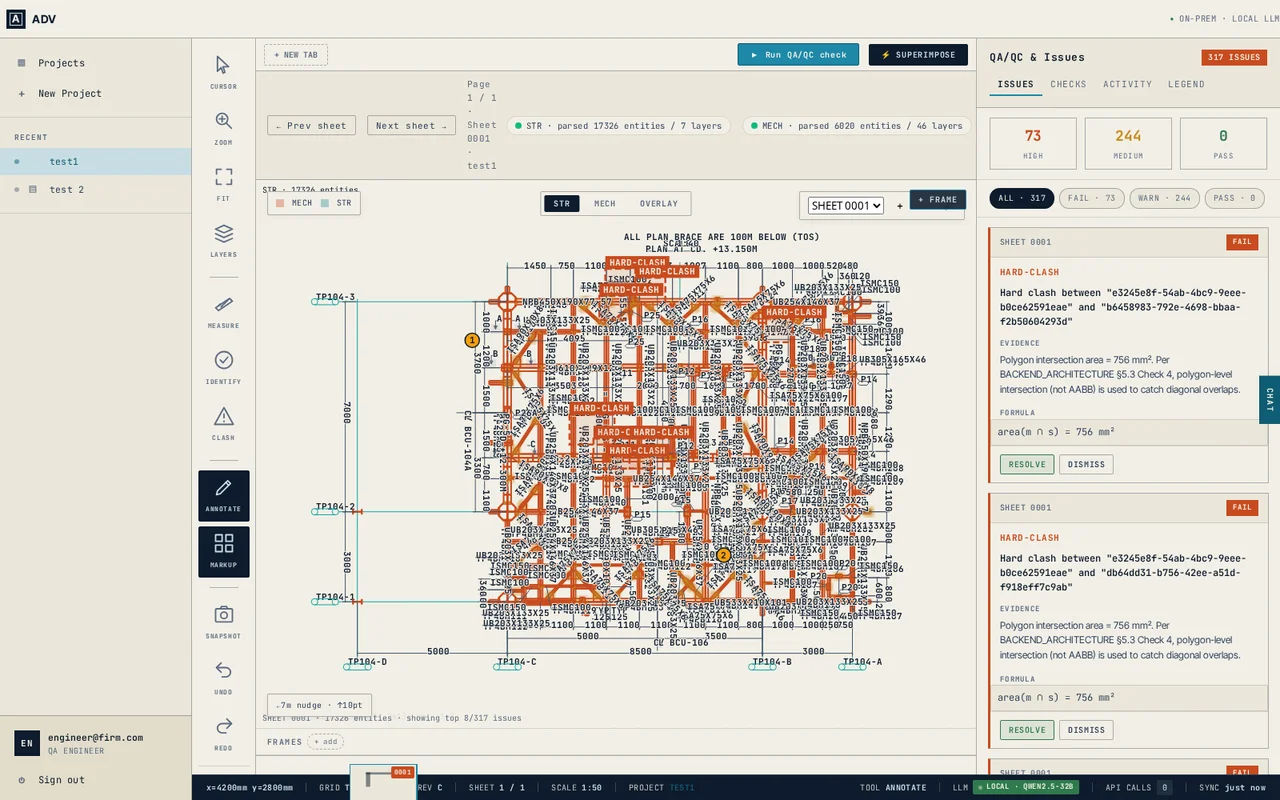

// screens
// in depth
Context
ISGEC Heavy Engineering produces large structural and mechanical General Arrangement (GA) drawings that historically required manual review by senior engineers. ADV replaces that review with a deterministic geometric rule engine layered with an LLM-assisted explanation pass, both gated by a strict latency budget.
Two phases, on purpose
The analysis is split so the part that has to be trusted finishes before the part that might not.
Phase 1 is synchronous and deterministic. No network, no model, no randomness — eight checks over the parsed geometry, and the request does not return until they are done.
Phase 2 is a single LLM call that runs in the background under a 20-second timeout. The front end polls for its status, and the deterministic results are already on screen while it works.
The split matters because the failure modes are different. If the LLM times out it degrades
to an explicit AI-TIMEOUT finding and the rule results still stand — it never fails the
request, and it can only append findings, never overwrite one the rule engine produced.
Parsing CAD without trusting the file
The DXF parser is hand-written rather than delegated to a library, and that is a decision
about tolerance: real drawings are messy. The parser recovers from desync — a group code
that is not an integer, or one outside the valid range, is appended to the previous token
instead of aborting the file. Drawing units are read from $INSUNITS and converted to
millimetres, so every tolerance in the rule engine is expressed in the same unit.
DWG is handled by magic-byte version detection with a conversion attempt through libredwg.
When that is unavailable the file is parsed partially — layers, elevations and pipe tags are
sniffed out and the parse is marked partial rather than quietly pretending to be
complete. IFC and PDF are stubs, and they say so.
Entity labels are attached in two passes: the first collects every text and mtext entity, the second attaches each one to the nearest candidate within 800 mm on the same sheet. Labels are not assumed to sit near the thing they name.
The eight checks
| Code | Check | Method | Tolerance |
|---|---|---|---|
TAG-VERIFY | Fuzzy ID match | RapidFuzz ratio + grid proximity, optimal assignment | ≥0.80 pass, 0.55 manual |
POS-DELTA | Position | √(Δx² + Δy²) | ±25 mm, high above 100 |
SIZE-DELTA | Size | Per axis | ±10 mm, high above 50 |
HARD-CLASH | Clash | Shapely STRtree + intersection area | ≥1 mm² |
CLEAR-VIOL | Clearance | STRtree + buffer + distance | ≥50 mm |
ELEV-DELTA | Elevation | ` | Δm |
OPEN-MISS | Missing opening | Jaccard 3-gram similarity | 0.55, high |
OPEN-ORPH | Orphaned opening | Unmatched structural openings | medium |
The spatial index is what keeps the clash and clearance checks sub-quadratic: candidate
pairs come from an STRtree query rather than an all-pairs sweep, and only the surviving
candidates are tested for intersection.
Matching a mechanical entity to its structural counterpart is a one-to-one assignment problem, not a nearest-neighbour one — two openings must not both claim the same structural member. The implementation scores every candidate pair on label similarity and grid proximity, then solves the assignment optimally when SciPy is available and falls back to a greedy best-first path when it is not.
Findings explain themselves
Every finding carries the formula that produced it alongside the numeric result:
0.45·lev + 0.40·cos + 0.15·prox = 0.87
√((Δx = 80)² + (Δy = 80)²) = 113 mm > ±25 mm
|13.150 − 13.350| × 1000 = 200 mm > ±50 mm
area(m ∩ s) = 54000 mm²A reviewer can check the arithmetic instead of taking the verdict on trust, and the evidence string carries the sheet, grid and the IDs on both sides of the comparison.
The revision ledger
Drawing revisions are modelled as a chain rather than a pile. Each file is hashed with
SHA-256 under a unique constraint, so re-uploading identical bytes returns 409
DUPLICATE_REVISION rather than silently creating a second copy. Revisions are grouped by
a normalised family id — the filename is lowercased and revision markers stripped, so
TP-104 STR GA - Rev B.dwg and TP-104 STR GA - Rev C.dwg land in the same family — and
each revision letter points at the one it supersedes.
The LLM, and what it is allowed to do
Structured output is enforced rather than hoped for: the response is requested as JSON
against a Pydantic-generated schema, at temperature=0.2. Gemini 2.5 Flash is the default
provider, with a local Ollama model (qwen2.5:14b) as the fallback — and if both are
unavailable, a deterministic heuristic normaliser still produces usable output, so the
system degrades in quality rather than in availability.
The provider chain is: configured provider → the other provider → heuristic normalisation. Nothing in that chain can fail the request.
Structure
FastAPI + SQLAlchemy 2 over SQLite in WAL mode, with a Next.js 14 front end. Five tables —
projects, files, entities, issues, revisions — and roughly 4,400 lines of backend
Python across 29 files, with the rule engine, parser, revision ledger, normaliser and
end-to-end flow covered by 49 pytest cases.
